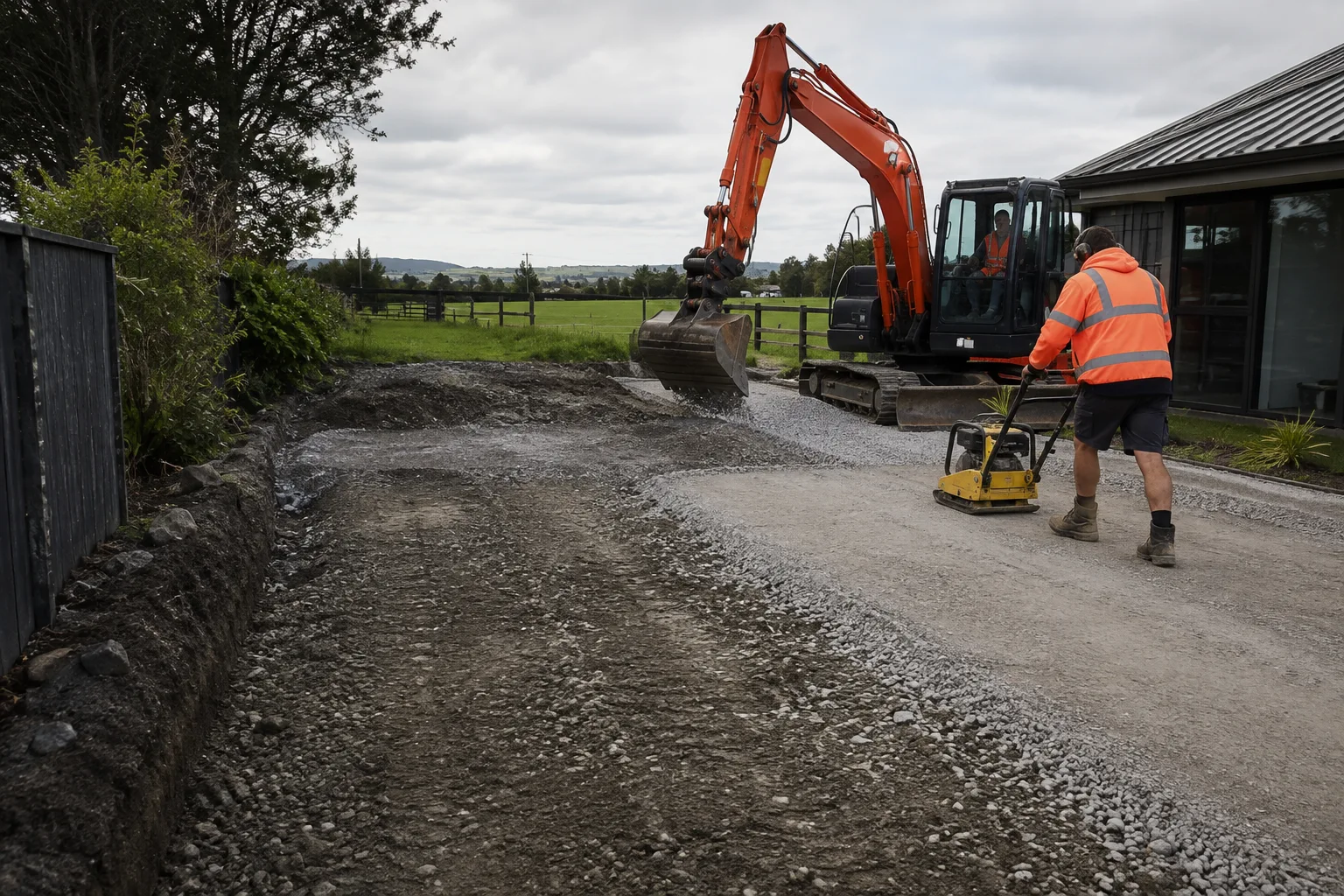

Driveway Excavation
Excavation and sub-base preparation for new or replacement driveways, shaped and compacted to the finished levels the surface needs — as a standalone job or as the first stage of a full install.
View serviceDriveways, Access & Civil Groundworks
Christchurch Driveway Culvert
Excavation and pipe-laying for driveway culverts, keeping water moving under an access way instead of pooling or washing it out.
03 661 7200Your site. A clear next step.
Driveway Culverts Installation Christchurch
A driveway culvert keeps water flowing and your access safe. Christchurch Earthworks installs Christchurch driveway culverts for residential, rural, and lifestyle properties where a driveway crosses a drain, swale, or roadside channel. We excavate the crossing, prepare a firm bed, lay the pipe to the correct grade, and backfill and compact around it to handle vehicle loads. Correct sizing and placement prevent blockages, flooding, and washouts during heavy rain. We follow council requirements and work carefully around existing services and drainage. Once the culvert is in, we can finish the driveway surface to suit. Get a durable, compliant crossing that protects your property. Call Christchurch Earthworks today for a driveway culvert quote.
Tell us what you want to achieve, where your site is and when you would like to start. Include any plans, access constraints or measurements that will help us understand the work.
Get a Free Estimate
Recognise your project
Plan a crossing around the water path
- Existing culvert too small for the volume of water it needs to carry
- Pipe blocked with silt, debris or crushed by vehicle loading over time
- Water backing up and flooding the driveway entrance or nearby paddock
- Driveway surface washing out around an undersized or poorly bedded culvert
- No culvert at all where one is needed for a new access point
- Outlet end of the pipe eroding the bank or ditch below it
Define the work
Christchurch Driveway Culvert: How We Work
01
Assessment of the existing flow path, catchment and pipe condition
We assess the existing flow path, how much catchment feeds it and the condition of any pipe already there. Sizing a culvert without knowing what feeds it is how crossings wash out.
02
Excavation of the trench for the new or replacement culvert
The trench for the new or replacement culvert is excavated to the depth and alignment the pipe and its cover require. Alignment follows the natural flow path rather than the convenience of the driveway.
03
Correct bedding material under and around the pipe
Correct bedding material is placed under and around the pipe. Bedding supports the pipe evenly along its length; laid straight onto uneven ground, a culvert pipe deforms or cracks under load.
04
Culvert pipe laid to the fall needed to keep water moving
The pipe is laid to a fall that keeps water moving through rather than standing in it. A culvert laid flat silts up, and once it silts up it stops working in the rain that matters.
05
Backfill and compaction over the pipe to support driveway loading
Backfill is placed and compacted over the pipe to the depth needed to carry driveway loading. Insufficient cover or loose backfill shows up as a dip across the driveway right above the pipe.
06
Headwall or outlet protection to reduce erosion at the pipe ends
Headwalls or outlet protection are formed to reduce erosion where water enters and leaves the pipe. Unprotected ends scour out, undermining the driveway edge from beneath over successive storms.
07
Reinstatement of the driveway surface area for handover to a surfacing contractor
The driveway surface area over the culvert is reinstated and handed over ready for a surfacing contractor. Levels are matched so the crossing does not read as a patch once surfaced.
08
Coordination with council requirements where the culvert sits within road reserve
Where the culvert sits in road reserve, we work to the council's requirements for it. Work on that land generally needs approval, and the specification is theirs rather than ours to set.
Why work with us
Why Choose Our Driveway Culvert Experts in Christchurch
- 01
Sized against what actually feeds it
We assess the flow path and catchment before choosing a pipe. A culvert sized without knowing what drains into it is the reason crossings wash out in the first big storm.
- 02
Laid to a working fall
The pipe is laid so water keeps moving through rather than standing in it. A culvert laid flat silts up, and a silted culvert does nothing in the rain that matters.
- 03
Bedded so the pipe does not deform
Correct bedding under and around the pipe supports it evenly along its length. Laid straight onto uneven ground, a culvert pipe cracks or distorts under driveway loading.
- 04
Cover and compaction for vehicle loads
Backfill depth and compaction over the pipe are what stop a dip forming across the driveway directly above it, which is the usual sign the crossing was rushed.
- 05
Ends protected against scour
Headwalls or outlet protection stop water undermining the driveway edge at the pipe ends. Unprotected ends scour out over successive storms until the crossing edge collapses.
- 06
Road reserve requirements handled
Where the culvert sits in road reserve, the specification and approval are the council's. We work to their requirements rather than discovering them after the fact.
Working conditions
Equipment and access for driveway culvert
Culvert work is typically carried out with a compact excavator suited to trench digging in confined driveway or roadside spaces, paired with compaction equipment for backfilling. Exact machinery depends on pipe size, trench depth and how the site can be accessed.
Plan around the work
Driveway access is usually restricted for the duration of the dig and pipe-laying, which is often a short job unless the culvert is long or the ground is difficult. We avoid working during or immediately after heavy rain where possible, since high water flow in the drain makes the work harder and less safe. Some reinstatement time is needed before the driveway surface is fully usable again.
Get the detail right
Driveway Culvert FAQs
An undersized pipe, wrong fall or poor bedding is a common reason culverts block, collapse or send water somewhere it shouldn't go. Getting the pipe size and grade right for the catchment, and compacting the backfill properly, is what keeps a driveway culvert working through heavy Canterbury rain rather than needing to be dug up again.
What size culvert pipe do I need?
It depends on the catchment area feeding the drain and any council rules that apply to your road frontage. We assess the site and can advise on appropriate sizing rather than defaulting to a single standard pipe.
Do you supply the culvert pipe or do I need to source it?
We can arrange pipe supply as part of the job or work with pipe you've already sourced, whichever suits your project.
How long does a driveway culvert installation take?
A standard driveway culvert is usually a short job of a day or so, though this depends on pipe length, trench depth and ground conditions.
Can you install a culvert as part of a new driveway build?
Yes, culvert installation is often carried out as one stage of a wider driveway excavation project so levels and drainage are coordinated together.
My existing culvert keeps blocking or flooding, can you fix it?
We can assess whether the pipe is undersized, poorly laid or simply blocked, and replace or re-lay it as needed.
Do I need council sign-off for a culvert under a driveway?
Where the culvert sits within the road reserve or affects a public drain, council requirements may apply. We recommend confirming this before work starts, and can work in with what's required.
